O Ring

PTFE coating rubber O Ring Rohs reach Seal manufacturer
O Ring

PTFE coating rubber O Ring Rohs reach Seal manufacturer

Contact Now
  • PTFE coating rubber O Ring Rohs reach Seal manufacturer
  • PTFE coating rubber O Ring Rohs reach Seal manufacturer

Description

Product Description

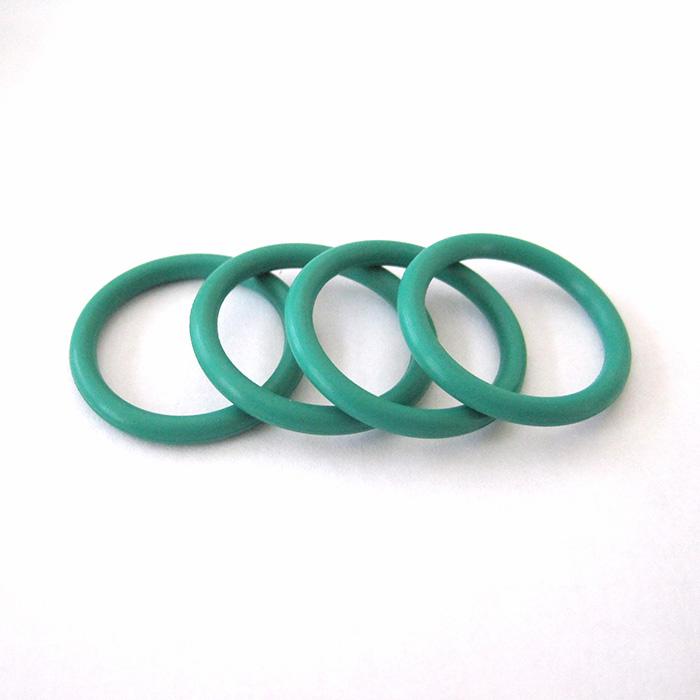

PTFE coating O Ring Rohs reach Seal manufacturer

The o-ring covers both the chemical resistance of tetrafluorin and the elasticity of rubber. It is made of rubber with an outer plastic covering and is resistant to almost all chemical media.(Soluble baseMetal, high temperature fluorine gas and chlorine trifluoride (except CIF3) are mainly used in pumps and valves, heat exchangers, boilers, filters, reaction vessels, pressure vessels and pipelines Flange, mechanical seal, gas compressor, extraction equipment, etc.

There are three kinds of outer plastic: 1.FEP (polyperfluoroethylene propylene), temperature resistance -20℃~200℃, universal type; 2.

2.PTFE temperature resistant -20℃~260℃, high temperature resistant;

There are two main types of inner rubber:

1. Silicone Rubber (SILCON)

2. Fluororubber (VITON)

Others such as nitrile rubber (NBR), EPDM to be customized.

Coating: Teflon FEP(polyperfluoroethylene propylene) -60℃…205℃ can be used at 260℃ high temperature for a short time

Coating: Teflon PFA(soluble polytetrafluoroethylene) -60℃…260℃ can be used at a high temperature of 300℃ for a short time

Inner core: VITON– Fluororubber E-60C Grade (imported)

Inner core: SILICON– SILICON rubber ZZR 765B (imported)

Solid cladding sealing ring is the first choice. It is widely used in static and dynamic sealing. The diameter of hollow silicone rubber cladding sealing ring is generally made

Larger, used in static sealing, its hardness and compressibility than the solid core sealing ring to lower.2. Fluororubber (VITON)

Others such as nitrile rubber (NBR), EPDM to be customized.

Hits:【Print】 Pre:Irrigation Motor Gearbox Shaft Rotary Oil Seal China SupplierNext:Industry Viton FKM Oil Seal China Manufacturer

Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
