Agriculture Oil Seal

John Deer Grease Drive Shaft Oil Seal China Supplier
Agriculture Oil Seal

John Deer Grease Drive Shaft Oil Seal China Supplier

Contact Now

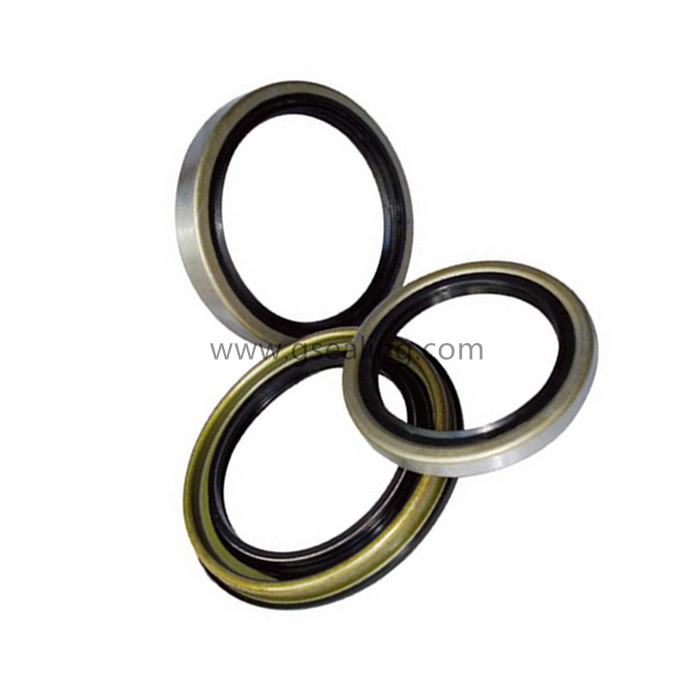

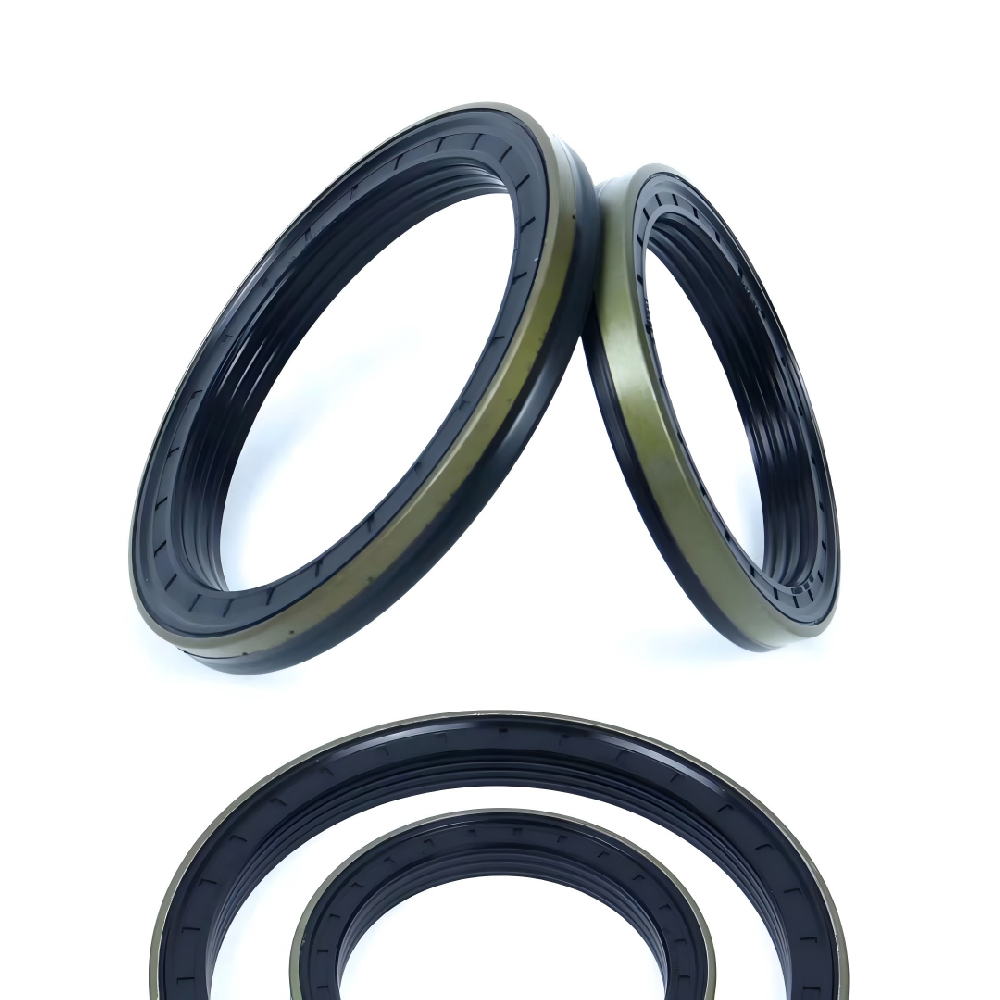

  • John Deer Grease Drive Shaft Oil Seal China Supplier
  • John Deer Grease Drive Shaft Oil Seal China Supplier

Description

Product Description

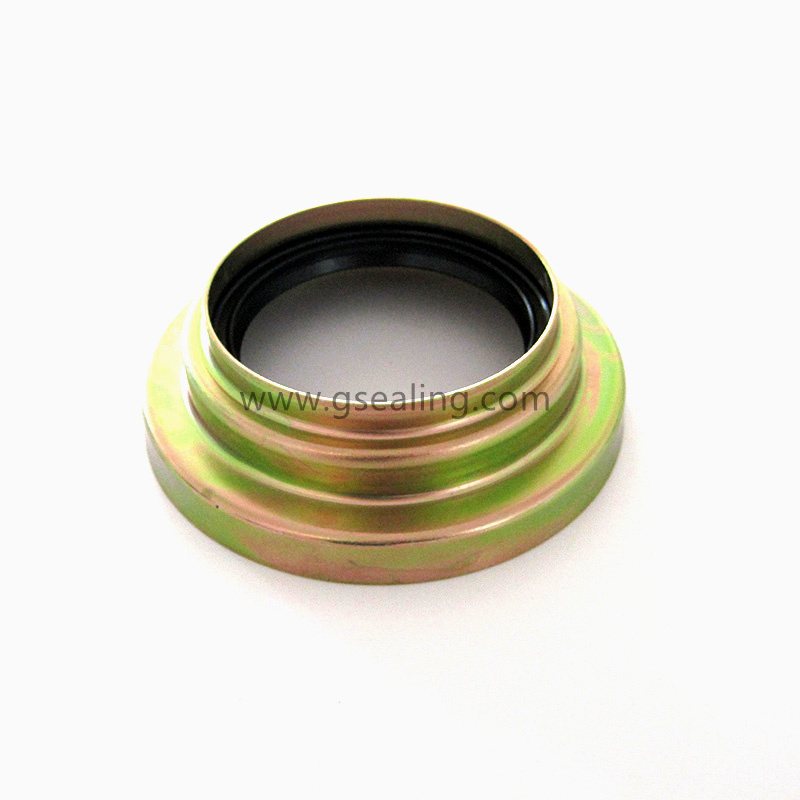

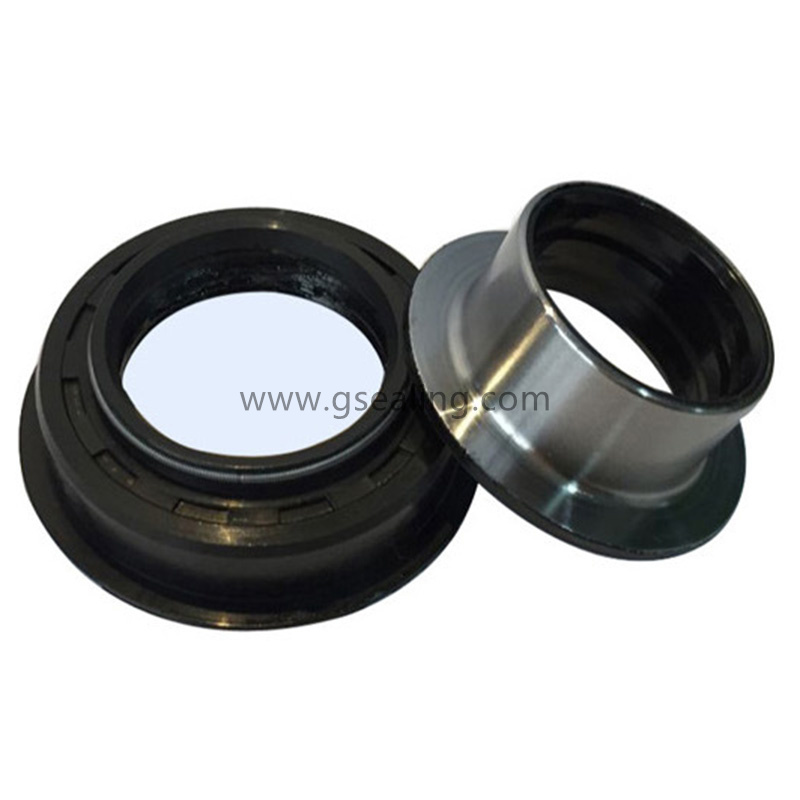

Grease drive shaft oil seal & RETAINER

OE Number Name ID*OD*H (MM)/(INCH)
17746 oil seal 44*81*11
14971 seal ring 38*59.7*7/10.7
16069 oil seal 41.3*59.13*11
12437 oil seal 50.46*30.4*6.35
12427 oil seal 30*50*6.5
16289/SE1006284 oil seal 40*65*11
15190 oil seal 38.1*66.725*6.35
906283 oil seal 1.500*2.623*0.250
20044 oil seal 50.8*77.876*6.35
AP19255 Case 78.4*85.7/91.4*23
O-RING O RING 18.6*3.5
30087 oil seal 76.2*114.427*11.1
SEAL RING 38*59.7*7
APN21900 Metal ring 58*63.2*9.5
18823 oil seal 47.6*76.3*6.35
24863 oil seal 63.5*76.2*6.35
G906486/27394 oil seal 69.85*95.4*6.35
27394DEM oil seal 2.750*3.751*0.438
33772 oil seal 85.725*117.627*11.1
43771 oil seal 111.125*152.4*12.7
48693 TA Oil seal 123-152.5-12.7
14975/SG042103-5/G906296 oil seal 1.500*2.328*0.390
20148/SG040803-1/SE1006285 oil seal 50.8*92*6.35
12437 oil seal 50.46*30.4*6.35/ 1.25*1.983*0.250
22392 oil seal 2.25*3.061*0.250
16069 oil seal 41.3*59.13*11
HUB873/871 oil seal 109*151*2.4
HUB881 oil seal 125*158.75*2.4
17617 oil seal 44.45*69.04*9.12
25091 oil seal 63.5*95.4*11.12
29968 oil seal 76.2*101.68*6.35
HUB411/SE11 oil seal 37.8*59.13*11.8
14975 oil seal 38.1*59.13*9.9
48693 oil seal TA123*152.5*12.7
7S6502/400500 seal ring 45*55*9
19617 Oil seal 44.45*69.04*9.12
14974 Oil seal 1.500*2.328*0.390
ABC13294 1.500*2.286*0.270
750RET 59.45*63.5*9.7/6.8
538266 /538266（ Oil seal 25.4*59.7*7
71326 Oil seal 27.5*38*4.7/5.4
12437 1.250*1.983*0.250
AN102006 oil seal 48.6*69.9*8
13548 Oil seal 1.375*1.874*0.25
281241 Oil seal 71.8*95*8
21815 Oil seal 34*50.8*8
20017 Oil seal 46*62.8*7.5
16069 Oil seal 41.3*59.13*11
18823 Oil seal 47.6*76.3*6.35
14975 Oil seal 38.1*59.13*9.9
102266 Oil seal 30.5*52.2*10
199491 Oil seal 25*33/38*6.3/16.5
199884 Oil seal 35*62*9/15
176386 Oil seal 49*68*9/15
71326 Oil seal 27.5*38*4.7/5.4
14971 Oil seal 38*59.7*7/10.7
16284 Oil seal 41*65*6.4
71326 Oil seal 27.5*38*4.7/5.4
281241 Oil seal 71.8*95*8
199491 Oil seal 25*33/38*6.3/16.5
1860 Ret Oil seal 93.6*101.5*11.8
12437 Oil seal 1.25*1.983*0.250/50.46*30.4*6.35
102006 Oil seal 48.6*69.9*8
176386 Oil seal 49*68*9/15
381721 Oil seal 23.5*38.1*6.5
199884 Oil seal 35*62*9/15
667564 Oil seal 65.5*76*15.5
200886 Oil seal 42.7*68.8*7.4
594702 Oil seal 50.6*73.4*7.6
594703 Oil seal 71.2*82.5*12.7*1.2
6575S Oil seal 60.7*90*7
634036 Oil seal 35*50.8*8
196011 Oil seal 57.15*76.1*9.5
103303-S Oil seal 28*40.5/44*4
G19 Oil seal 37.7*62*7
G20 Oil seal 38.1*58.06*7
10991 Oil seal 1.00*1.25*0.12
500360/17620 oil seal 44.3*70.5*7.5

Hits:【Print】 Pre:Nissan Viton Automotive Valve Stem Seals China ManufacturerNext:High Quality Machinery Irrigator Dust Oil Seal Valmont Gearbox Oil Seal China Manufacturer

Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
