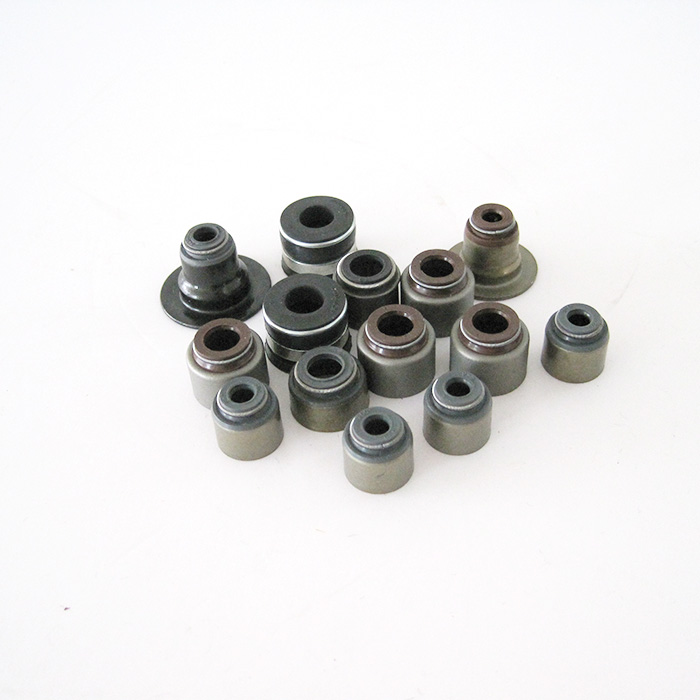

Valve Stem Seal

Valve Stem oil seal for Pakins
Valve Stem Seal

Valve Stem oil seal for Pakins

Contact Now
  • Valve Stem oil seal for Pakins
  • Valve Stem oil seal for Pakins

Description

Valve stem seal (Valve stem seal) is a kind of oil seal, used to seal the engine Valve guide rod.which is generally vulcanized by outer metal and viton rubber . The oil seal diameter part is equipped with self-tightening spring or steel wire,  The valve oil seal can prevent the oil from entering the exhaust pipe, avoid the oil loss, prevent the mixture of gasoline and air and the exhaust gas from leaking, prevent the engine oil from entering the combustion chamber. The valve oil seal is one of the important parts of the engine valve group, which is in contact with gasoline and engine oil at high temperature.Temperature: -40-250 Degree

va

How to produce them ?

1. Rubber making : From Raw material formular ,mixing rubber ,and Preform.

2. Metal pressing and surface treatment

3. Mould pressing under standard pressure and hot teemperature by production guide card

4- Cutting lip by automatic machine

5- Inspection and Packing ,Usually is  8 pcs or 16 pcs each bag ,or 500 pcs each bag




We supply valve seals for automotive ,truck ,diesel engine ,motorcycle and so on

Automotive valve seal divided into intake valve and exhaust valve two kind.There is no specific replacement cycle, there is aging, hardening or damage after the replacement can be. The symptoms of a broken valve oil seal are an oil leak; an oil leak from the valve oil seal causes an accelerated oil loss; blue smoke from the back of the exhaust pipe; and an oil leak into the cylinder, then forms “Burns the engine oil”the phenomenon.

The method of judging the damage of the valve oil seal is as follows:

1. Disassemble the intake manifold to find the black gel substance above the valve, and then confirm the valve oil leak, and the mixture of oil and impurity will form the black gel substance in the long-term high temperature state.

2. judge the valve oil leak by the way of the throttle and the throttle. When the gas pedal, exhaust pipe blue smoke, that is the piston, piston ring and cylinder liner wear clearance is too large. When the throttle, exhaust pipe blue smoke, then the valve oil seal damage, valve guide wear,

3, usually the valve oil seal problems caused by the impact of the engine burning oil and exhaust smoke blue. Without treatment for a long time, it is easy to let the valve and spark plug carbon accumulation serious, full combustion, which leads to the car engine power decline.

Customized requirement is allowed,Please contact us if you have any request or inquiry .





Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
