PTFE Seal

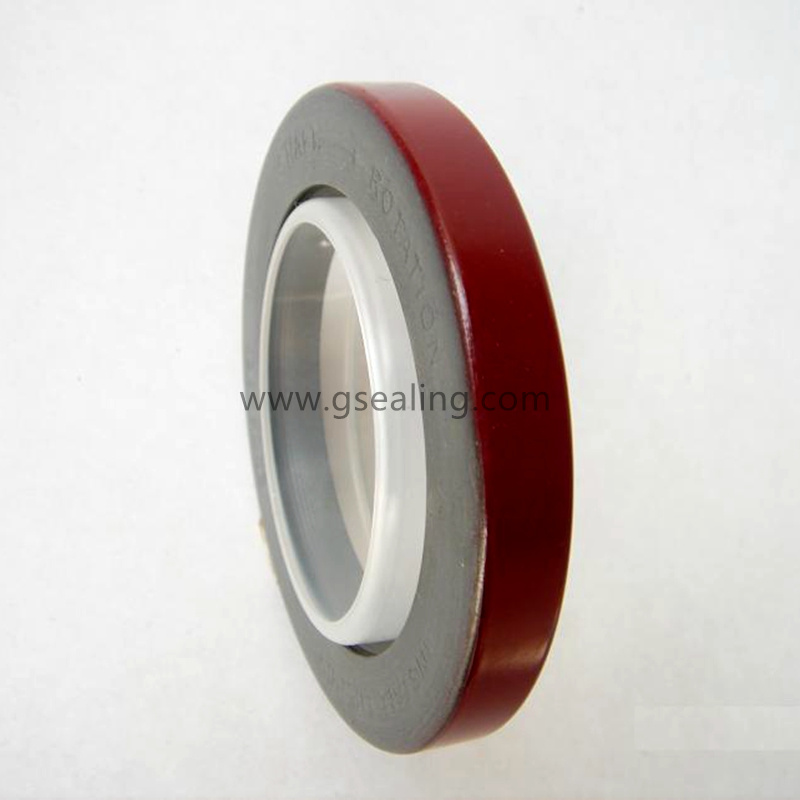

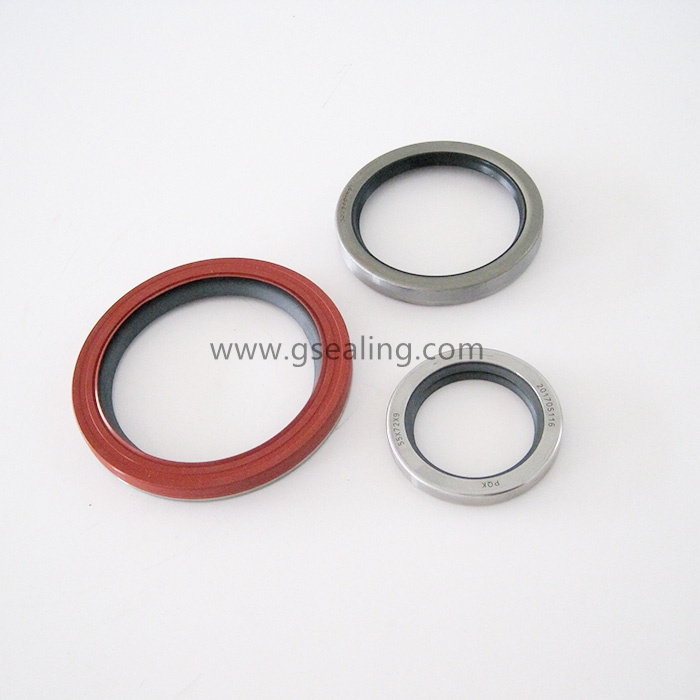

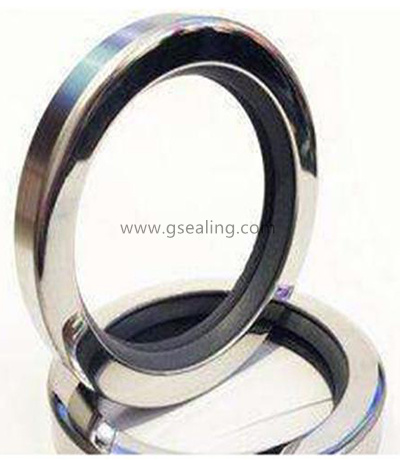

PTFE Lip High Temperature Shaft Seal
PTFE Seal

PTFE Lip High Temperature Shaft Seal

Contact Now
  • PTFE Lip High Temperature Shaft Seal
  • PTFE Lip High Temperature Shaft Seal
  • PTFE Lip High Temperature Shaft Seal
  • PTFE Lip High Temperature Shaft Seal

Description

PTFE lips seal were designed to bridge the gap between conventional elastomer lip seals and mechanical face seals. Hostile environments such as extreme temperatures, aggressive media, high surface speeds, high pressures, and lack of lubrication forced the designer to specify the expensive and complicated mechanical face type seals. lips seal provides the designer a significant improvement in performance over elastomer lip seals at a much lower cost than the mechanical face seal. PTFE lip seals solve difficult applications which are not addressed by conventional elastomer seals.



We exceed the performance of elastomer lip seals in the following areas:

1.Lower friction

Generates less torque - Less heat - Requires less power

Typical Applications: Conveyor Rollers, electric motors, rolling stock, generators, compressors, vacuum

pumps, high performance vehicles

2 Aggressive media resistance

Unaffected by solvents, chemicals, acids, synthetic & adulterated oils Typical applications: Chemical

processing equipment, pumps, mixers, agitators, blenders, pharmaceutical & foods.

3.Capable of surface speeds to 35m/s

4.Works to temperature extremes(-100 to+250C)Typical Applications: Aerospace, military, automotive,

steel mills, crankshafts, moulding machines

5.Has extended seal life in dry or abrasive media ,Reduced breakout friction and stiction

Typical Applications: Powder sealing, dust/dirt excluders, off road vehicles, radar equipment, paper mills,air compressor

6.Capable of pressures to 6Mpa

7. For food or pharmaceutical industry

dfb

hcv (1)

DL

Formed Primary Lip with Excluder Lip Ideal to keep oil and water & dirt out

hcv (2)

SL

Formed Primary Lip  General purpose rotary shaft seal.

hcv (3)

TRIL

Dual Primary Lips with Excluder Lip
Redundant sealing for aircraft or other low leakage systems. Keeps water & dirt out.

hcv (4)

DLS

Dual Primary Lips Redundant sealing for aircraft or other low leakage systems.

hcv (5)

TRIHP

High Pressure Dual- lip Seal with Metal Backup Washer with Excluder Lip
Redundant seal for high pressure aircraft or other low leakage systems. Keeps water & dirt out

hcv (6)

DLSH

High Pressure Dual- Lip Seal with Metal Backup Washer
Redundant seal for high pressure aircraft or other low leakage systems.

hcv (7)

TRIPP

Dual Lip Seal w/ Primary Lip Energized with Garter Spring w/Excluder Lip
Use when redundant sealing is needed &shaft runout is 0.10 to 0.30mm or abrasive media.Keeps water & dir out

hcv (8)

DLSP

Dual Lip Seal w/Primary Lip Energized with Garter Spring
Use when redundant sealing is needed & shaft runout is 0.10 to 0.30mm or abrasive media.

hcv (9)

DLP

Primary Lip Energized with Garter Spring w/ Excluder Lip
Use when shaft runout is 0.10 to 0.30mm or abrasive media. Keeps water & dirt out.

hcv (10)

SLP

Primary Lip Energized with Garter Spring
Use when shaft runout is 0.10 to 0.30mm or abrasive media.

Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
