Mechanical Seal

Industrail Shaft Rotary Oil Seals China Manufacturer
Mechanical Seal

Industrail Shaft Rotary Oil Seals China Manufacturer

Contact Now
  • Industrail Shaft Rotary Oil Seals China Manufacturer
  • Industrail Shaft Rotary Oil Seals China Manufacturer
  • Industrail Shaft Rotary Oil Seals China Manufacturer

Description

Product Description

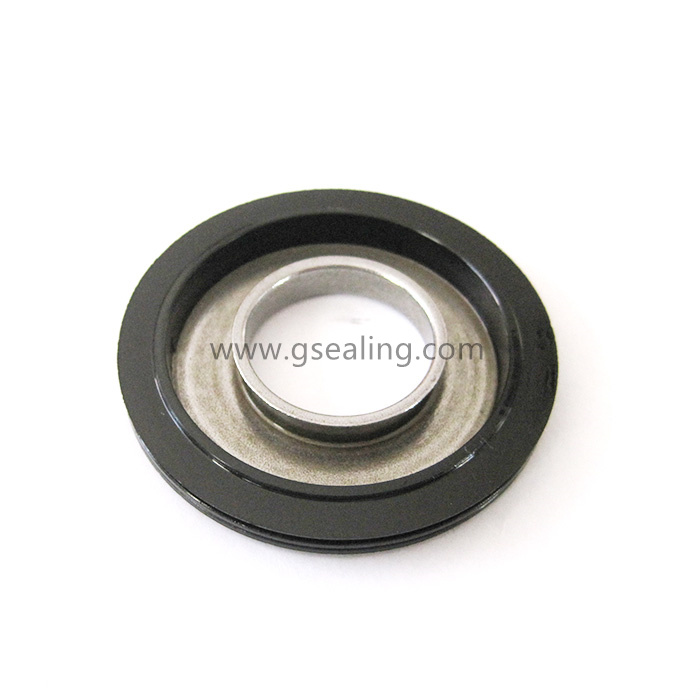

Grease drive shaft oil seal & RETAINER CR 538266 ID: 1 inch, OD: 2.356 ,THINKNESS: 0.27



OE NumberNameID*OD*H (MM)/(INCH)
17746oil seal44*81*11
14971seal ring38*59.7*7/10.7
16069oil seal41.3*59.13*11
12437oil seal50.46*30.4*6.35
12427oil seal30*50*6.5
16289/SE1006284oil seal40*65*11
15190oil seal38.1*66.725*6.35
906283oil seal1.500*2.623*0.250
20044oil seal50.8*77.876*6.35
AP19255Case78.4*85.7/91.4*23
O-RINGO RING18.6*3.5
30087oil seal76.2*114.427*11.1

SEAL RING38*59.7*7
APN21900Metal ring58*63.2*9.5
18823oil seal47.6*76.3*6.35
24863oil seal63.5*76.2*6.35
G906486/27394oil seal69.85*95.4*6.35
27394DEMoil seal2.750*3.751*0.438
33772oil seal85.725*117.627*11.1
43771oil seal111.125*152.4*12.7
48693TA Oil seal123-152.5-12.7
14975/SG042103-5/G906296oil seal1.500*2.328*0.390
20148/SG040803-1/SE1006285oil seal50.8*92*6.35
12437oil seal50.46*30.4*6.35/ 1.25*1.983*0.250
22392oil seal2.25*3.061*0.250
16069oil seal41.3*59.13*11
HUB873/871oil seal109*151*2.4
HUB881oil seal125*158.75*2.4
17617oil seal44.45*69.04*9.12
25091oil seal63.5*95.4*11.12
29968oil seal76.2*101.68*6.35
HUB411/SE11oil seal37.8*59.13*11.8
14975oil seal38.1*59.13*9.9
48693oil sealTA123*152.5*12.7
7S6502/400500seal ring45*55*9
19617Oil seal44.45*69.04*9.12
14974Oil seal1.500*2.328*0.390
ABC13294
1.500*2.286*0.270
750RET
59.45*63.5*9.7/6.8
538266 /538266（Oil seal25.4*59.7*7
71326Oil seal27.5*38*4.7/5.4
12437
1.250*1.983*0.250

AN102006 oil seal48.6*69.9*8
13548Oil seal1.375*1.874*0.25
281241Oil seal71.8*95*8
21815Oil seal34*50.8*8
20017Oil seal46*62.8*7.5
16069Oil seal41.3*59.13*11
18823Oil seal47.6*76.3*6.35
14975Oil seal38.1*59.13*9.9
102266Oil seal30.5*52.2*10
199491Oil seal25*33/38*6.3/16.5
199884Oil seal35*62*9/15
176386Oil seal49*68*9/15
71326Oil seal27.5*38*4.7/5.4
14971Oil seal38*59.7*7/10.7
16284Oil seal41*65*6.4
71326Oil seal27.5*38*4.7/5.4
281241Oil seal71.8*95*8
199491Oil seal25*33/38*6.3/16.5
1860 RetOil seal93.6*101.5*11.8
12437Oil seal1.25*1.983*0.250/50.46*30.4*6.35
102006Oil seal48.6*69.9*8
176386Oil seal49*68*9/15
381721Oil seal23.5*38.1*6.5
199884Oil seal35*62*9/15
667564Oil seal65.5*76*15.5
200886Oil seal42.7*68.8*7.4
594702Oil seal50.6*73.4*7.6
594703Oil seal71.2*82.5*12.7*1.2
6575SOil seal60.7*90*7
634036Oil seal35*50.8*8
196011Oil seal57.15*76.1*9.5
103303-SOil seal28*40.5/44*4
G19Oil seal37.7*62*7
G20Oil seal38.1*58.06*7
10991Oil seal1.00*1.25*0.12
500360/17620oil seal44.3*70.5*7.5

Hits:【Print】 Pre:High Quality Machinery Irrigator Dust Oil Seal Valmont Gearbox Oil Seal China ManufacturerNext:Hyundai Excavator O Ring Repair Kits China Supplier

Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
