High Pressure Oil Seal

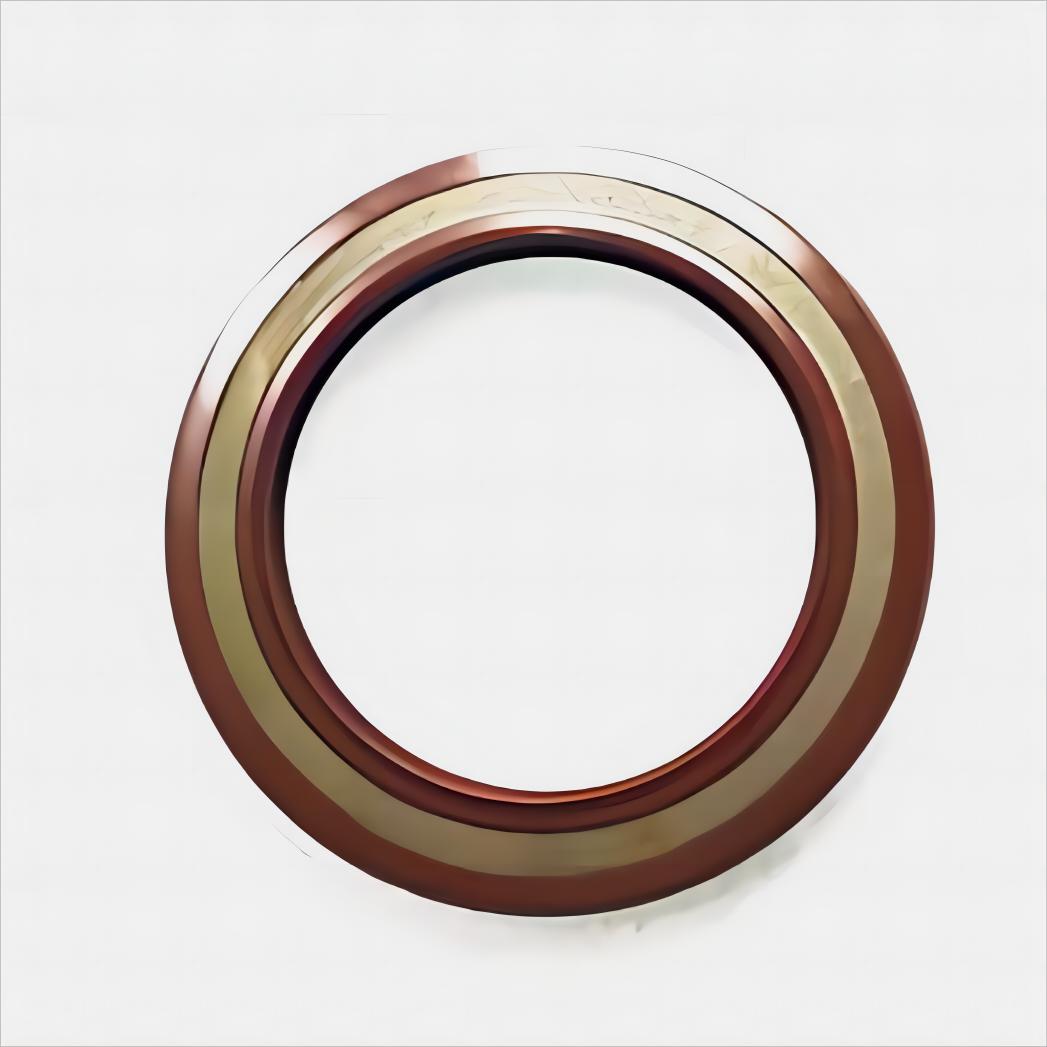

High pressure VITON BABSL CFW Rotary shaft oil seal
High Pressure Oil Seal

High pressure VITON BABSL CFW Rotary shaft oil seal

Contact Now
  • High pressure VITON BABSL CFW Rotary shaft oil seal
  • High pressure VITON BABSL CFW Rotary shaft oil seal

Description

CONTROL VALVE OIL SEAL,MOTOR OIL SEAL ,PUMP OIL SEAL

13*19*2.5 EATON CONTROL VALVE OIL SEALTBV 20*47*628.97*50.8*7 （1701383）
16*30*7 AP0687FTBV 17*30*6TBV 29*51*7  （AN527R）
17.46*28.58*5.7/6TBV 19.05*31.75*6.35TCV 28*40*6
19*44.45*6.35TBV 19*35*3/730*42*7   AP1665E
19.5*33*7TBV 19*28.56*730*52*7
20*35*7  AP1012J12*30*534.7*63*6(23马达)
20*32*619.5*30*6/6.534.93*50.8*7.95
22*30*629*44*4.72（MSD7285）TCV 35*47*6/5.5
22*32*620*40*6TBV 52*68*10
22*35*625*43*935*48*5.5
20*35*635*50*635*54*6
24*34*6.335*55*6TBV 35*56*6
24*38*725*38*7（全包）AP1306F35*62*10四氟防尘黑色
25*35*625*44.4*736.32*50.8*8.7
25*35*725*52*6/537.7*62*6（089泵）
25*37*725*36*637.6*63*6（23泵）
25*47*725*40*7  AP1314H40*55*6
25*40*8.924.61*44.45*6.3540*67*7
25.4*44.4*6.3(25*44.6*9.5铁壳）40*62*6  铁/胶
26*42*725.4*44.45*7TBV 40*80*7
26*34*747*67*940*52*6
26*38*6.548*62*740*63*7
26*37*749.23*62.71*741.28*60.35*9.5  394974
27*33*3.260*80*1242*55*6
27*40*729.36*42.88*7.9542*62*7
27*41.6*6.5TBV 30*40*744.45*60*7
27*35*6/5.535*65*6.544.45*57.15*7.9 (PAVC100,1722313F)
27*37*3.5+铜片28.97*50.8*7（1701383）配KRR04590*110*10
27*38.5*5.6TBV 28.56*39*4.8 黑色28*35*2.5防尘90*110*10
27*38*6.5TBV 60*75*845*65*4.7   45*52*4
28*40*4黑色36.1*57.15*9.545*65*7
28*38*4黑色25*31.75*3防尘45*80*7
28.56*48*5.5SCNW 45*65*646*68*7
28*50.8*6SCNW 35*48*5.547*62*7
28.56*42*5.5SCNW 45*65*735*47.4*7 P/N51155-5
28*40*6/7SCNW 30*48*736*47*7
28.87*41.2*6.57铁  萨奥42L28/41SCNW 28.56*42*4.855.5*75*9半铁半胶
30*48*7SCNW 35*52*555*72*7
30*54*6/7SCNW 28.56*42*5.550*65*7
TBV 30*55*7SCNW 45*65*4.7  45*52*4AR0995H 20*32*6.5/8.6
32.7*50.8*9SCNW 28.56*48*670*100*6.5/5.5 motor oil seal
31.75*44.45*6.35  TCM 12202SCNW 35*48*4.795*170*7.3 motor oil seal
28*36*6SCNW 28.56*39*4.878*110*12.4      motor oil seal

Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
