Shock absorber bushing

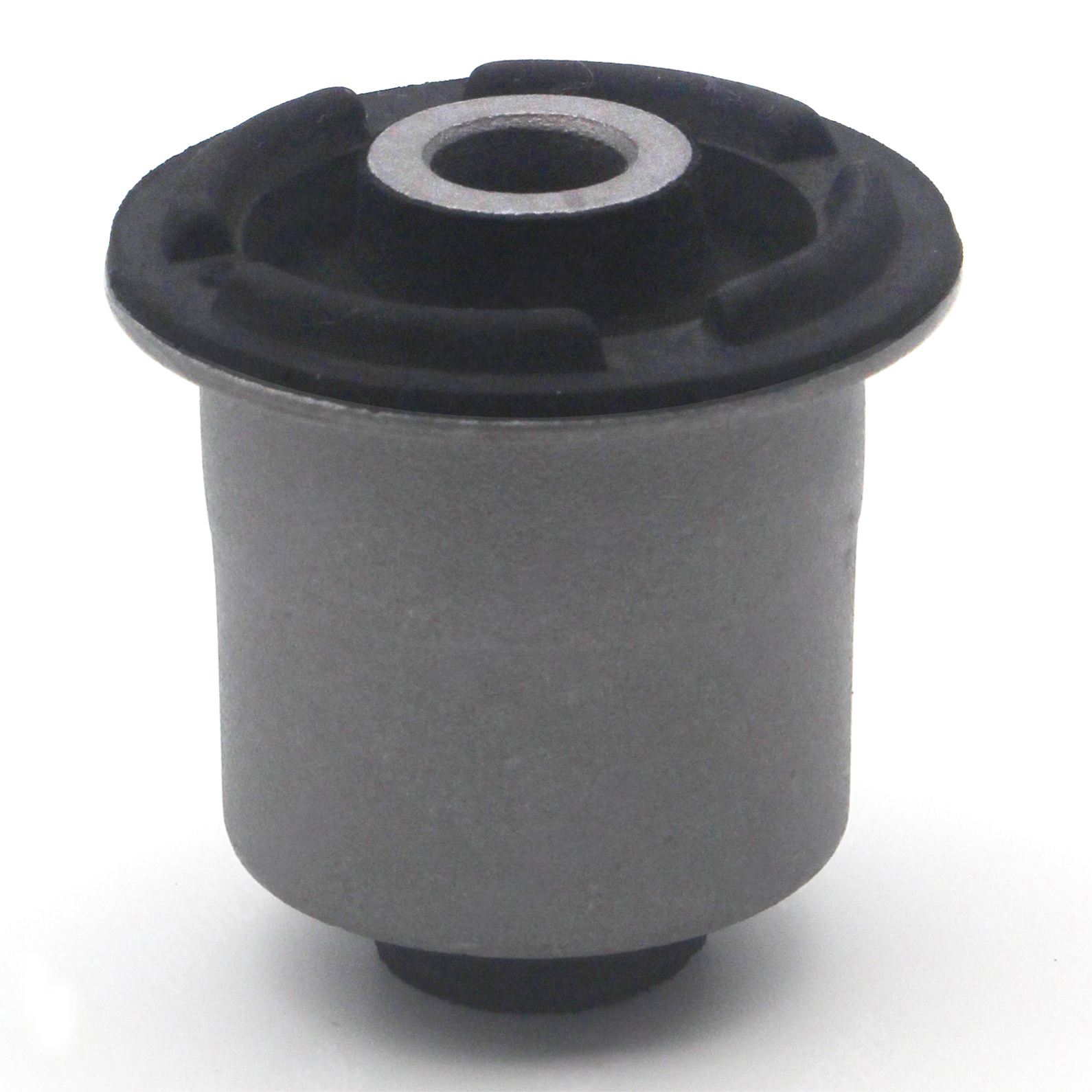

Toyota - ST171 - Lower Arm Bush 48068-20200
Shock absorber bushing

Toyota - ST171 - Lower Arm Bush 48068-20200

Contact Now
  • Toyota - ST171 - Lower Arm Bush 48068-20200
  • Toyota - ST171 - Lower Arm Bush 48068-20200

Description


1. What is the Lower Arm Bush?

  • Location: It's a rubber or polyurethane component pressed into the front lower control arm (or "lower wishbone").

  • Function: Its primary job is to allow controlled movement for the lower control arm. It pivots to allow the wheel to move up and down over bumps while also resisting fore-aft movement to keep the wheel alignment (specifically the caster and toe) stable.

  • Importance: A healthy bush ensures precise steering, good stability at high speeds, and prevents premature tire wear.

2. Common Symptoms of a Worn ST171 Lower Arm Bush

When these bushes wear out, you will likely notice one or more of the following:

  • Vague or Imprecise Steering: The steering feels loose, especially on the highway, and requires constant small corrections.

  • Knocking or Clunking Noises: A distinct "clunk" or "knock" from the front end when going over bumps, potholes, or during sharp turns.

  • Poor Stability Under Braking: The front of the car may feel like it's "wandering" or pulling to one side when you brake.

  • Excessive Vibration: Vibrations through the steering wheel or chassis, often caused by the altered geometry.

  • Accelerated Tire Wear: Worn bushes allow the wheel to move out of alignment, causing uneven tire wear, typically on the inner or outer edges.

  • Vehicle Pulling to One Side: While this can also be a brake or alignment issue, a severely collapsed bush can cause a persistent pull.



Product Categories

Recommended Products

What factors influence the performance of industry rubber seals

The sealing effect of the sealing ring is related to the material characteristics of the sealing ring. There is also a close influence on other factors. For example, the speed of rotation, working temperature, working pressure, working medium, etc., today I will tell you about the four factors that affect the sealing performance of the sealing ring.

First, the speed of rotation

  When the rotation speed is very low (< 0.03m/s), it is necessary to consider the smoothness of the operation of the equipment and whether the operational appears "crawling" phenomenon. When the movement speed is very high (> 0.8m/s), the lubricating oil film may be destroyed, and the oil seal is not well lubricated and frictions heat, resulting in greatly reduced life. It is recommended that polyurethane or rubber and plastic oil seal work in the speed range of 0.03m/s ~ 0.8m/s. High-speed oil seals need to put forward higher requirements for structure and material, and the speed of household appliances oil seals can reach 20000rpm. Both wear and temperature resistance need to be met, and the concentricity requirements of dynamic sealing on the installation are relatively high.

Second, the temperature of the working environment

  Low temperature will reduce the elasticity of rubber and plastic oil seals, resulting in leakage, and even the entire oil seal becomes hard and brittle. High temperature will make the oil seal volume expansion, soft, resulting in the oil seal friction resistance increases rapidly and the pressure resistance decreases. It is recommended that the continuous operating temperature range of ordinary polyurethane or rubber and plastic oil seals be -10 ° C to +80 ° C. For the high temperature and high speed requirements of the working environment, we need to choose to use fluorine rubber and PTFE, high temperature resistance and wear resistance is better, the low temperature environment is generally to -40 degrees, and the rubber performance is tested at high and low temperatures to ensure that the product quality meets the requirements.

Third, the working pressure of machinery

  The oil seal has a minimum service pressure requirement. Oil seals with low friction and low starting resistance should be selected for low pressure work. Below 2.5MPa, polyurethane oil seal is not suitable; High pressure to consider the oil seal pressure deformation, need to use anti-extrusion stop ring, grooving processing also has special requirements.

Fourth, the working medium

  General sealing media are gasoline, oil, diesel, grease, and some static sealing dust. In addition to selecting the working medium strictly according to the manufacturer's recommendations, it is important to keep the working medium clean. Aging or contamination of the oil will not only cause the components in the system to fail, accelerate the aging and friction of the oil seal, but also the dirt in it may scratch or embed the oil seal, making the seal fail. Therefore, it is necessary to regularly check the quality of the oil and its cleanliness, and replace the oil filter or oil according to the maintenance specifications of the equipment. The air remaining in the oil in the cylinder will be compressed by high pressure, which will cause the oil seal to burn out or even carbonize. In order to avoid this situation, exhaust treatment should be carried out at the initial operation of the hydraulic system. The hydraulic cylinder should also run at low pressure and slow speed for a few minutes to confirm that the residual air in the oil has been drained before it can work normally.
