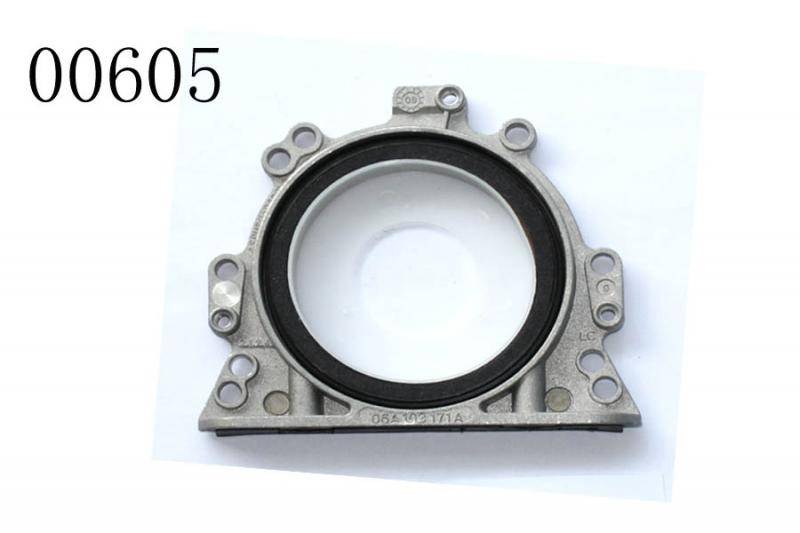

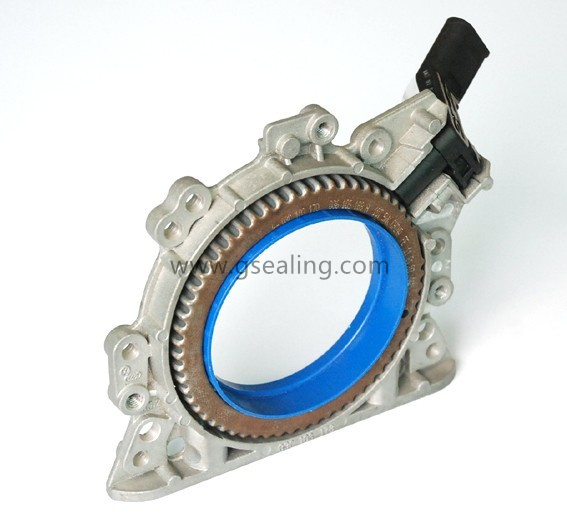

PAKINS VW AUDI IVECO,ENGINE CRANKSHAFT OIL SEAL
| XL-PHOTO | ||
| OEM | OEM | OEM |
| 06A103171A | 04E103173D | 028103171B 026103171B 028103171K 026103171D |
| MODEL | MODEL | MODEL |
| VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 068103051G 032104023L 068103171G 068198171S 1005303 | 06B103171B 06B103171D 06B103171E 06B103171J | 03C 103 173 |
| MODEL | MODEL | MODEL |
| VW / AUDI / SEAT / SKODA / FORD | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 030103171L 030103171C 030103171F 030103171H | 030 103 171Q | 03L103171 03L103171A 076103171 |
| MODEL | MODEL | MODEL |
| VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 032 103 173B 03C103173A | 030103173A 030103171S 030103171T 030103171H | 038 103 171S / 076103171 |
| MODEL | MODEL | MODEL |
| VW / FOX | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 06H 103 171 | 022 103 151D 95510115102 | 03H 103 151B |
| MODEL | MODEL | MODEL |
| VW / AUDI / SEAT / SKODA | VW / AUDI / SKODA / PORSCHE | VW / SKODA |
| OEM | OEM | OEM |
| 06H103171F 06H 103 171A 95810317100 06K103171G | 068103171F 02810317K 026103171B 028103171 | 04E103171E 04E103170B |
| MODEL | MODEL | MODEL |
| VW / AUDI / SEAT / SKODA / PORSCHE | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 911 505 341 00 | 06E103153E | 038 103 153S |
| MODEL | MODEL | MODEL |
| PORSCHE | VW / AUDI / SEAT / SKODA | VW / AUDI / SEAT / SKODA |
| OEM | OEM | OEM |
| 0K9BV11311 | **** | 1052B328 |
| MODEL | MODEL | MODEL |
| ROVER/KIA | *** | MITSUBISHI |
| OEM | OEM | OEM |
| LUF100420 ERR7028 | 100430 | LRO 43721 |
| MODEL | MODEL | MODEL |
| Land Rover | Land Rover | Land Rover |
| OEM | OEM | OEM |
| 68078786AA 68223854AA 5184285AG | 4663 622AC | 04663870 AB |
| MODEL | MODEL | MODEL |
| CHRYSLER / JEEP/ DODGE | CHRYSLER | CHRYSLER / JEEP/ DODGE |
| OEM | OEM | OEM |
| 3S7Q-6701-AB | 3S7Q-6700-AB | CK5Q-6K301-AA |
| MODEL | MODEL | MODEL |
| Ford | Ford | Land Rover / Cadillac |
| OEM | OEM | OEM |
| 12637710 12592243 | XS6E-6K301-B2G | 1S7G-6K318-AF LF0111310 LR025670 |
| MODEL | MODEL | MODEL |
| Cadillac | Fox FORD | FORD / MAZDA / LAND ROVER |
| OEM | OEM | OEM |
| XS40-9G605-AH | 89FF-6B653AC 89FF-6A735AA 6179489 6190948 | XS4Q6K301AF 1207615 1078528 |
| MODEL | MODEL | MODEL |
| Ford 1.8L | Ford 1.5L / 1.8L | Ford 1.8L |
| OEM | OEM | OEM |
| 2720100814 2720100614 2720100514 2720100414 | 55352612 | BM5G-6K301-AA 1S4G-6A321-AA 1S4G-6K301-AA |
| MODEL | MODEL | MODEL |
| Mercedes-Benz | CRUZE | Ford / FOX |
| OEM | OEM | OEM |
| 6040100114 | 6040100114 | 2710160121 2710151520 |
| MODEL | MODEL | MODEL |
| Mercedes-Benz | Mercedes-Benz | Mercedes-Benz |
| OEM | OEM | OEM |
| J0703070000 12279-43G04 12279-43G05 | 12279-43G03 | 1229631U20 1229631U10 1229631U20 7701063899 |
| MODEL | MODEL | MODEL |
| NISSAN /日产3.2劲旺2700 | NISSAN A31（Trade,F35.F45，L30.L50.T100） | NISSAN A32 / RENAULT |
| OEM | OEM | OEM |
| 12279-06J01 | 53021337AB 53021338AB #68095 BS40684 53021337AB 5140028AA 05140028 5140028 | *** |
| MODEL | MODEL | MODEL |
| NISSAN | CHRYSLER / DODGE 5.7L | *** |
| OEM | OEM | OEM |
| 2105.35 | 2105.14 | 2105.51 |
| MODEL | MODEL | MODEL |
| PEUGEOT / CITROEN | PEUGEOT / CITROEN | PEUGEOT |
| OEM | OEM | OEM |
| 609009780 | 7701476859 | *** |
| MODEL | MODEL | MODEL |
| PEUGEOT | Renault | *** |
| OEM | OEM | OEM |
| 46539824 | 99468744 504086314 051490 7701044092 0514.A8 5001865996 93185518 | 46416876 46416877 |
| MODEL | MODEL | MODEL |
| FIAT | FIAT / IVECO / PEUGEOT / RENAULT / CITROEN / OPEL | FIAT 1.6L / LANCIA |
| OEM | OEM | OEM |
| 46788297 | 500315684 5001865740 504031409 | 4010 2343 |
| MODEL | MODEL | MODEL |
| FIAT | IVECO / RENAULT TRUCKS | IVECO |
| OEM | OEM | OEM |
| 2418F701 | 2418F704 | 2418F705 |
| MODEL | MODEL | MODEL |
| PERKINS | PERKINS | PERKINS |
| OEM | OEM | OEM |
| 24106752 / (84*176/164*14.7) | 24107105 / (84*238.3/210.3*14.3) | |
| MODEL | MODEL | MODEL |
| FORD | FORD | *** |
